Six Sigma Approach to Reduce Door-to-Balloon Time for Patients With STEMI

May 5, 2020
Tushar Sharma, MD

Rohit Chaudhary, MIS

Jalaj Garg, MD

Ashok Kondur, MD

Divyanshu Mohananey, MD

Rahul Chaudhary, MD

The American Journal of Managed Care, May 2020, Volume 26, Issue 05

Specific measures using a Six Sigma approach led to sustained reduction of door-to-balloon times among patients with ST-segment elevation myocardial infarction (STEMI) in a community setting.

Am J Manag Care. 2020;26(5):e141-e141.

Takeaway Points

  • Guidelines recommend a door-to-balloon time (DTBT) of less than 90 minutes for patients with ST-segment elevation myocardial infarction.
  • We identified specific interventions using a Six Sigma approach that led to reduction in the overall mean (SD) DTBT (from 79 [52] to 57 [19] minutes; P <.001), with 99.4% (from 76.2%) of patients having a DTBT of less than 90 minutes. The reduction was sustained 3 years post interventions.
  • The results now exceed the national and state average of 94% to 96% of patients having a DTBT of less than 90 minutes.
  • Institutions in a community setting struggling to reduce their DTBT can adopt community hospital—specific interventions from this study to improve compliance.

Each year, more than 300,000 patients worldwide experience an ST-segment elevation myocardial infarction (STEMI). Primary percutaneous coronary intervention (PPCI) is the gold standard for these patients, with a recommended door-to-balloon time (DTBT) of less than 90 minutes.1 In a community-based hospital, we observed that only 76% of patients had a DTBT of less than 90 minutes despite CMS reporting a national average of 96%.2 Subsequently, several individual steps from the emergency department arrival of a patient to deployment of the balloon in the catheterization lab were identified. Interventions were then designed based on the Six Sigma ideology to improve performance at each step by reducing SD. Here, we report the specific interventions and their impact on the DTBTs specific to the community setting.

We collected data on 243 consecutive adult patients (≥18 years) who presented with out-of-hospital STEMI between October 1, 2013, and December 31, 2017. In addition to the total DTBT, data were collected on time durations for several steps as outlined in the Table. These data were collected using the CathPCI registry of the National Cardiovascular Data Registry after approval by the Institutional Review Board at Sinai Hospital of Baltimore in Baltimore, Maryland.3 The patients were divided into 3 groups: group 1 (preintervention group; n = 63; October 1, 2013, to September 30, 2014), group 2 (transition group; n = 14; October 1, 2014, to December 31, 2014; excluded from analysis), and group 3 (postintervention group; n = 166; January 1, 2015, to December 31, 2017). A Six Sigma approach was used for the primary end point of reduction in DTBT and the proportion of patients with DTBT less than 90 minutes and secondary end points of improvement in the time duration of each of the 7 steps mentioned in the Table. All analyses were conducted using IBM SPSS Statistics for Windows version 22.0 (IBM Corp; Armonk, New York).

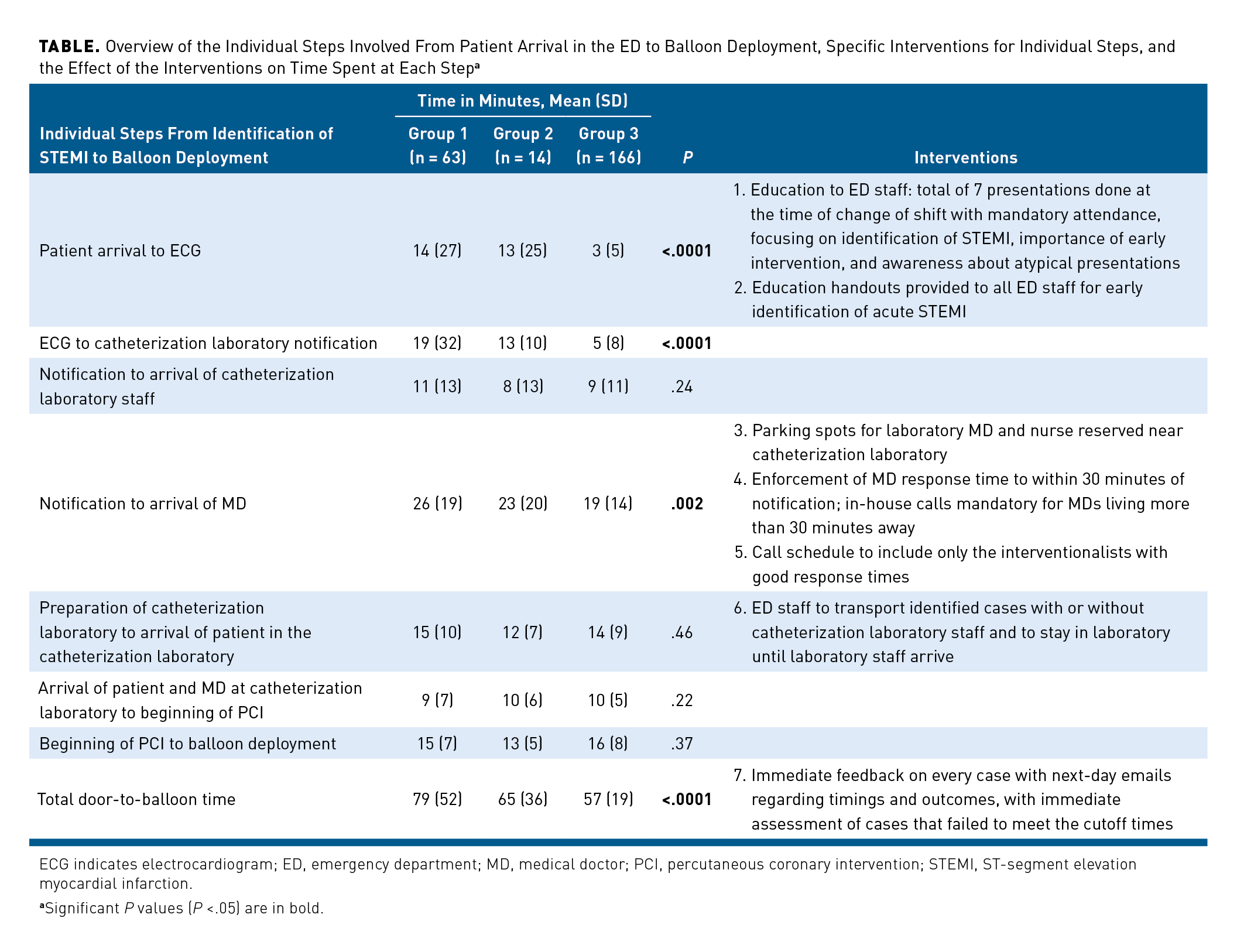

The mean age of patients was 63 years; 69% were male and 50% were black. Overall, the baseline demographics, comorbidities (including cardiovascular risk factors), and cardiac catheterization data were similar in group 1 and group 3. The individual steps, specific interventions targeting them, and their impact with reductions in mean and SD are noted in the Table. These interventions led to an overall reduction in DTBT from a mean (SD) of 79 (52) minutes in group 1 to 57 (19) minutes in group 3 (P <.0001), with 99.4% of patients in group 3 (vs 76.2% in group 1; P <.0001) achieving a DTBT of less than 90 minutes. No differences were observed in 48-hour postprocedure mortality or need for intra-aortic balloon pump.

DTBT has 3 key intervals—time from door to electrocardiogram (ECG), time from ECG to catheterization laboratory, and time from laboratory arrival to device—all of which are dependent on system factors that vary across institutions.4 In this study, we demonstrate successful customization of the generalized recommendations for STEMI DTBT reduction in the community setting using a Six Sigma approach. Although the change did not translate to decreases in postprocedural 48-hour mortality, the results now exceed the national and state average of 94% to 96% of patients receiving PPCI within 90 minutes. We anticipate that specific measures implemented at our institution will help other struggling community-based centers improve their DTBT and increase the percentage of patients receiving angiography within 90 minutes of arrival.&ensp;Author Affiliations: Sinai Hospital of Baltimore (TS), Baltimore, MD; Deakin University (RoC), Melbourne, Australia; Medical College of Wisconsin (JG, DM), Milwaukee, WI; Michigan State University (AK), Garden State, MI; Mayo Clinic (RaC), Rochester, MN.

Source of Funding: None.

Author Disclosures: The authors report no relationship or financial interest with any entity that would pose a conflict of interest with the subject matter of this article.

Authorship Information: Concept and design (TS, RoC, JG, AK, DM, RaC); acquisition of data (TS, RaC); analysis and interpretation of data (RoC, JG, DM, RaC); drafting of the manuscript (TS); critical revision of the manuscript for important intellectual content (JG, AK, DM, RaC); statistical analysis (RoC, RaC); provision of patients or study materials (TS); and supervision (JG, AK, RaC).

Address Correspondence to: Rahul Chaudhary, MD, Department of Internal Medicine, Mayo Clinic, 200 First St SW, Rochester, MN 55905. Email:

1. O’Gara PT, Kushner FG, Ascheim DD, et al. 2013 ACCF/AHA guideline for the management of ST-elevation myocardial infarction: a report of the American College of Cardiology Foundation/American Heart Association Task Force on Practice Guidelines. J Am Coll Cardiol. 2013;61(4):e78-e140. doi: 10.1016/j.jacc.2012.11.019.

2. Hospital profile: timely & effective care. website. Accessed July 20, 2019.

3. Moussa I, Hermann A, Messenger JC, et al. The NCDR CathPCI Registry: a US national perspective on care and outcomes for percutaneous coronary intervention. Heart. 2013;99(5):297-303. doi: 10.1136/heartjnl-2012-303379.

4. Bradley EH, Herrin J, Wang Y, et al. Door-to-drug and door-to-balloon times: where can we improve? time to reperfusion therapy in patients with ST-segment elevation myocardial infarction (STEMI). Am Heart J. 2006;151(6):1281-1287. doi: 10.1016/j.ahj.2005.07.015.&ensp;
